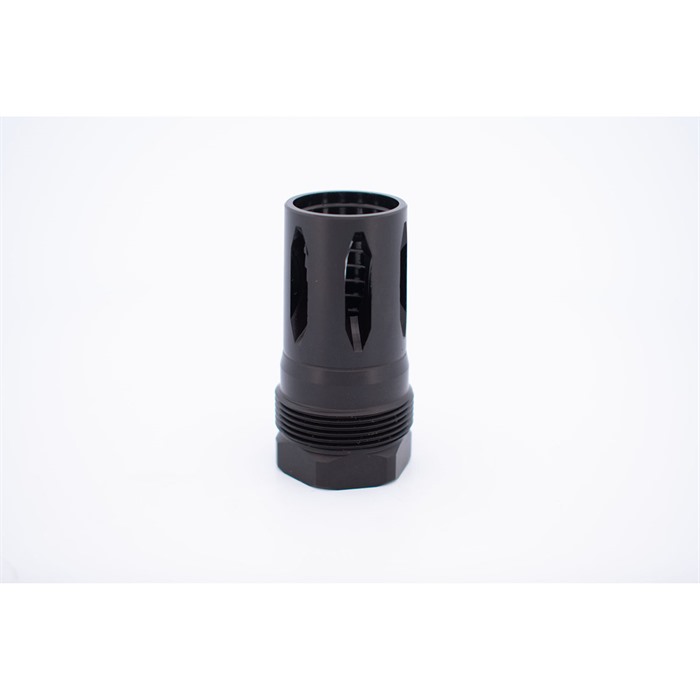

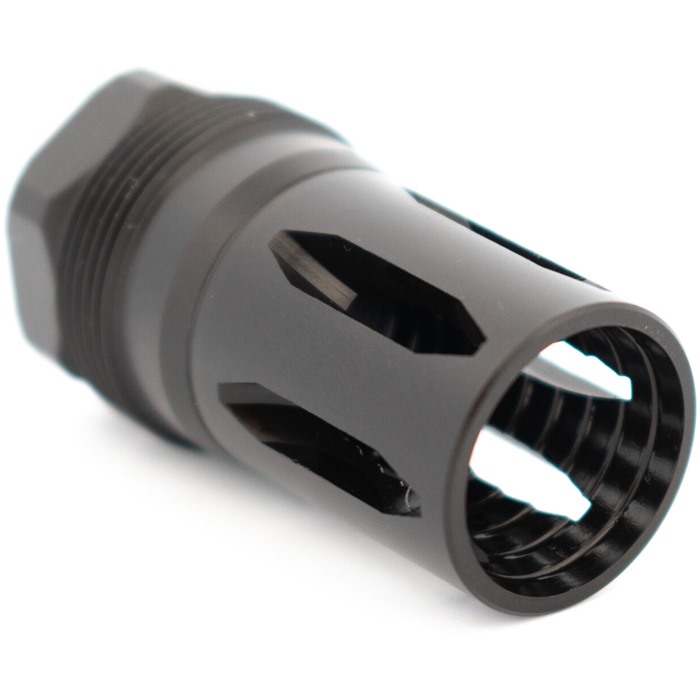

R2S FLASH HIDERS These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned. Torque the muzzle device to approximately 15-25 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly. FEATURES: 17-4 PH Atlas and Atlas XL compatible Plan B compatible Black Nitride finish (67 HRC Surface hardness) Shims not included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
Kraftig og pålitelig flash hider for optimal ytelse!
R2S FLASH HIDER er designet for å passe Plan B-type monteringer. Det er avgjørende å bruke en justeringsstang for å sikre at hele systemet er satt opp korrekt. Sørg for at alle overflater er rene, og at munnstykket er skrudd til og Rockset til løpet. Vær oppmerksom på at bruk av en Q kan annullere garantien din.
Installasjon og vedlikehold
- Momentstram munnstykket til omtrent 15-25 ft lbs.
- Sjekk at munnstykket er kvadratisk mot skulderen.
- Når du setter lyddemperen på munnstykket, sørg for at gjengene og konene er rene.
- Momentstram lyddemperen til 10 ft lbs.
- Sørg for riktig justering.
Den nitride finishen gir en tettere forsegling, så det er ekstremt viktig å momentstramme og rocksete munnstykket til løpet på riktig måte.
Funksjoner:
- 17-4 PH
- Kompatibel med Atlas og Atlas XL
- Plan B kompatibel
- Svart nitride finish (67 HRC overflatestrenghet)
- Shim-er er ikke inkludert; hvis du ønsker å spesifikt time dette, vil shim-er være nødvendige.
- Merk: løpet ditt kan kreve en shim hvis produsenten ikke har laget en gjengeavlastning på det.
