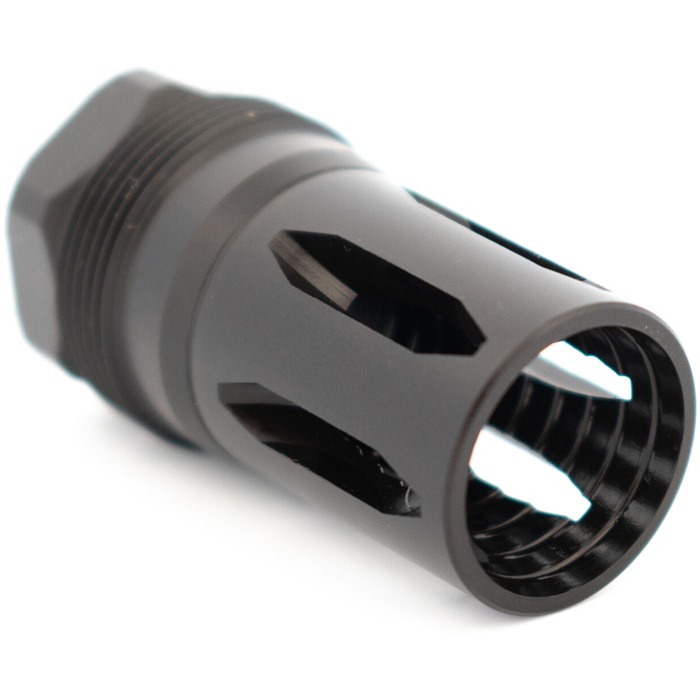

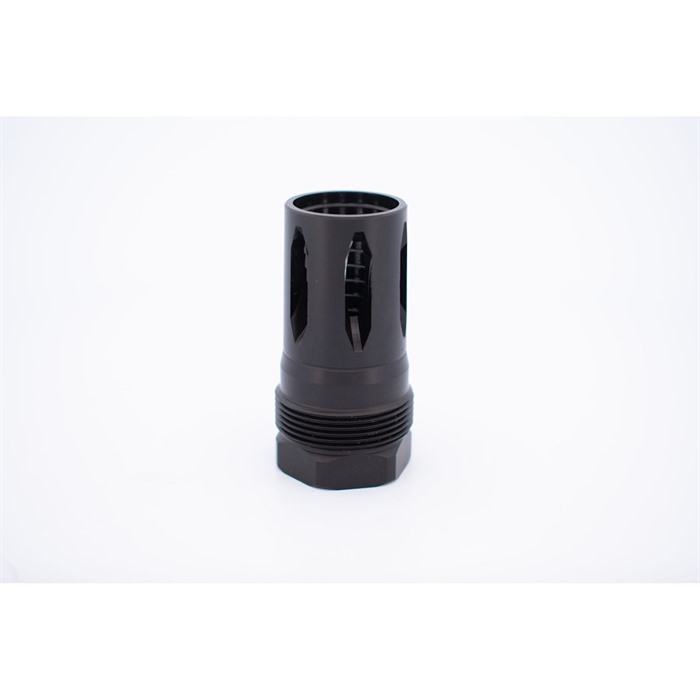

R2S FLASH HIDERS These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned. Torque the muzzle device to approximately 15-25 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly. FEATURES: 17-4 PH Atlas and Atlas XL compatible Plan B compatible Black Nitride finish (67 HRC Surface hardness) Shims not included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
Kraftig og pålitelig: R2S FLASH HIDER
R2S FLASH HIDERS er designet for å passe Plan B-type monteringer. Følg alltid instruksjonene nøye for å sikre at hele systemet er korrekt satt opp.
Produktbeskrivelse
- Bruk alltid en justeringsstang for å sikre korrekt oppsett.
- Sørg for at alle overflater er rene, og at munnstykket er korrekt festet og Rockset til løpet.
- Bruk av en Q kan annullere garantien, vær oppmerksom.
- Drei munnstykket til omtrent 15-25 ft lbs.
- Sjekk at munnstykket er i vinkel mot skulderen.
- Når du setter lyddemperen på munnstykket, sørg for at gjengene og taperne er rene.
- Drei lyddemperen til 10 ft lbs og sørg for at den er korrekt justert.
- Den nitridfinishen gir en tettere forsegling, så det er ekstremt viktig å feste og rocksette munnstykket til løpet på riktig måte.
Funksjoner
- 17-4 PH
- Kompatibel med Atlas og Atlas XL
- Plan B kompatibel
- Svart nitridfinish (67 HRC overflatestrenghet)
- Shims er ikke inkludert; hvis du ønsker å spesifikt time dette, vil shims være nødvendig.
- Merk: løpet ditt kan kreve en shim hvis produsenten ikke har lagt til en gjengeavlastning.
