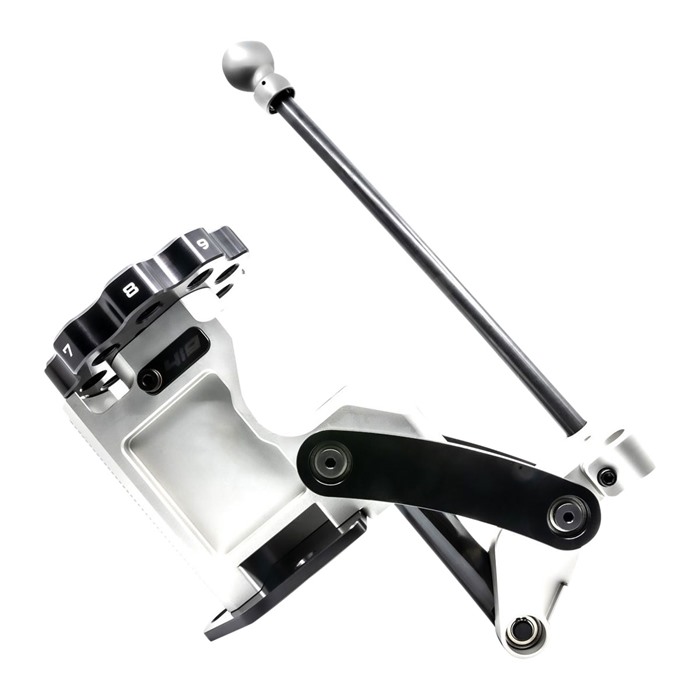

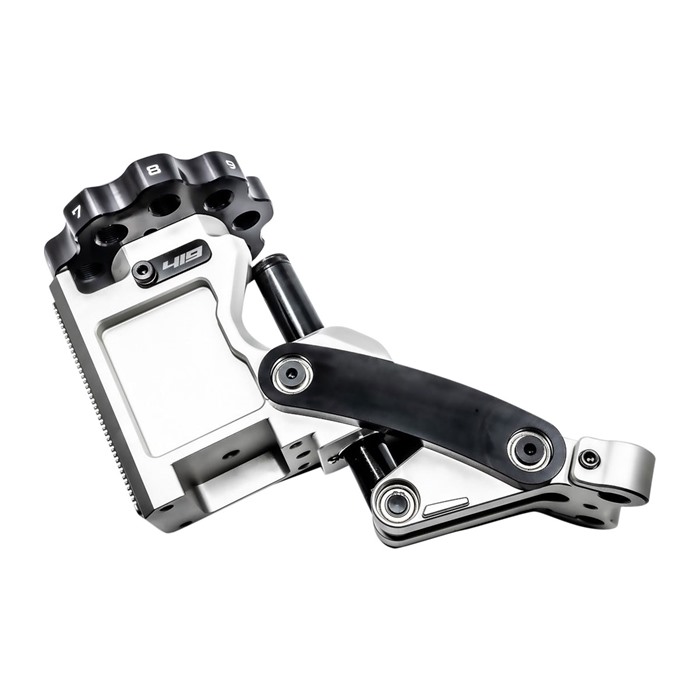

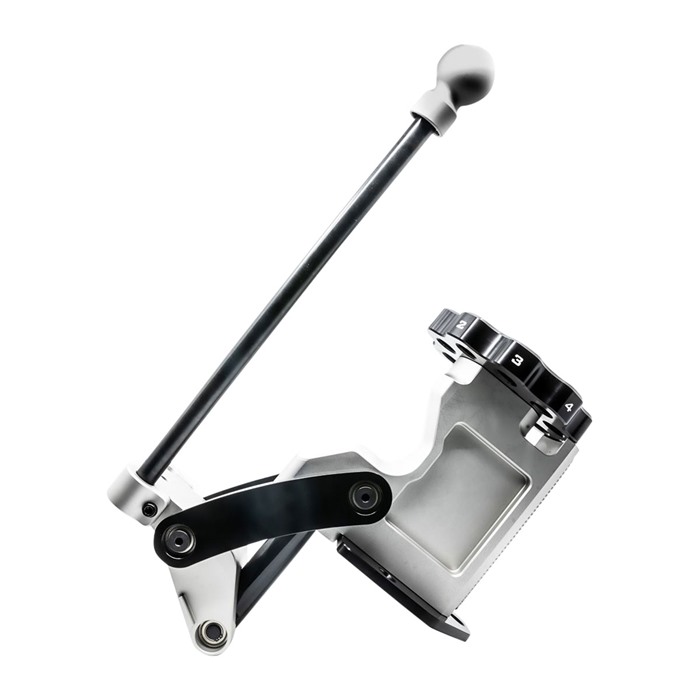

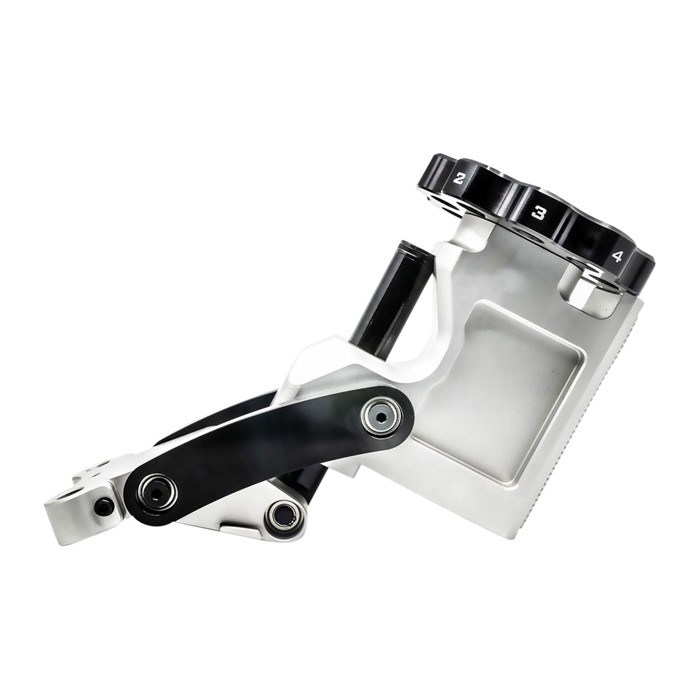

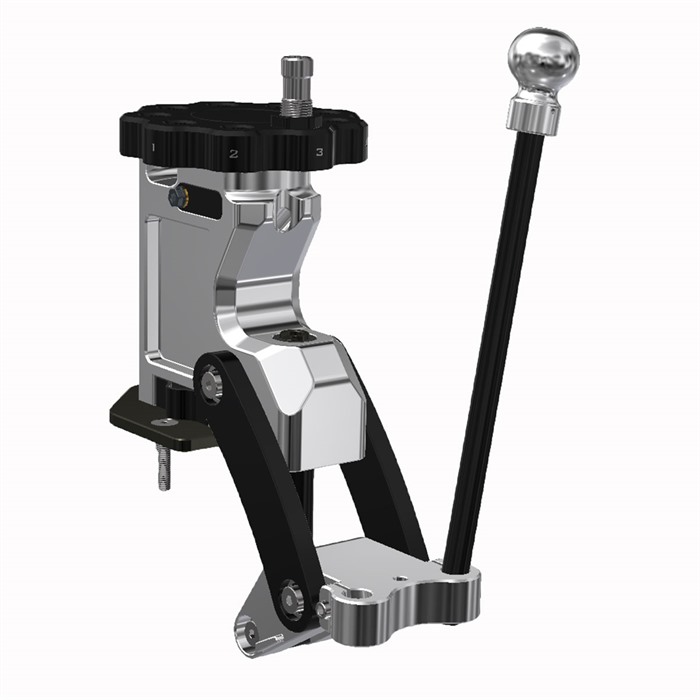

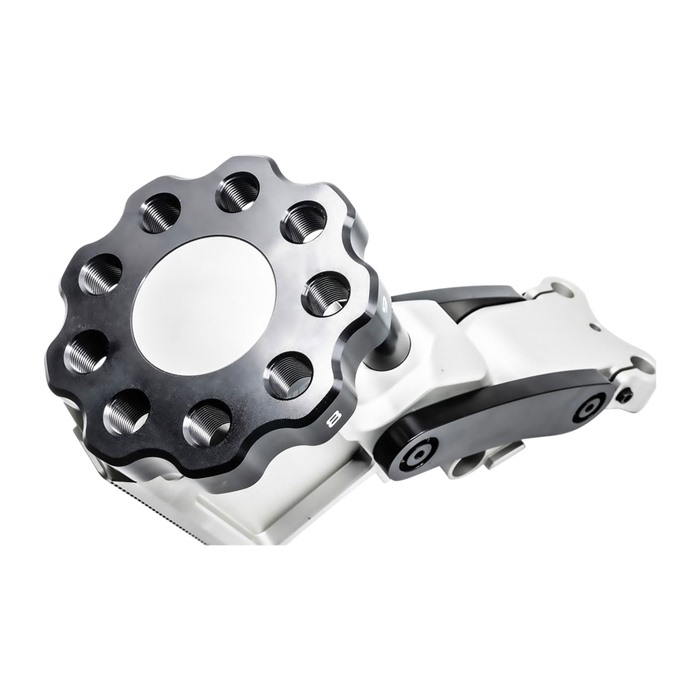

As the quality and precision of reloading equipment has advanced in the last few years Area 419 has watched companies overlook the core of the bench – the press. In late 2019 they began R&D on perfecting the precision reloading press – and we are happy to introduce the ZERO. It is the embodiment of our pursuit of ZERO tolerance reloading, with ZERO friction. The turret press also works toward ZERO variance in die setup. It will have ZERO equal on the market. Milled from all-American billet aluminum and stainless steel, this press moves with the help of 14 bearings, including a self-lubricating linear sleeve bearing, guiding the precision-ground 1.25″ ram with less than 0.0006″ of diametric clearance. Each press is hand measured and fitted, mating the ram and the bearing, ensuring the most precise ram stroke on the market – ZERO doubt about that. The linkage system will also glide on bearings and custom hardware which allows Area 419 to assemble the system with near-ZERO slop. The operation of the oversized ram, with the 0.75″ steel arm and ZERO-friction knob will be unlike anything you’ve ever experienced. The turret system will be secured using an over-sized, custom-made ZERO-point pull-stud, and the turret will be located using an oversized ball-detent system. Changing the position of the turret from one die to another will require only a turn of a (supplied) t-handle. When indexing the turret, repeatability variance of the system will be less than 0.0005″. The opening in the press will allow for sizing and seating of cases up to 338LM and will accept standard 7/8″ dies and standard shellholders. Using factory shellholders there will be a small amount of float available to account for uncontrollable 3rd party tolerances with shellholders specifically fit to the system coming soon. They have designed a decapping/primer-catch system into the body of the press. A simple slide-out tray (with detent) will make this mundane process smooth, simple, and unobtrusive. The zero-slop turret head allows you to change between dies, eliminating the variability induced when removing and resetting dies The turret head allows the press to work with multiple die-attachments without goofy thread-stacking adapters 4.4” of available ram-stroke, allowing you to use it on cases up to 338 Lapua Magnum The extended ram position is more repeatable than any ram-style press on the market More efficient energy transfer from handle to ram via bearing-guided motion throughout the system Adjustable/interchangeable handle setup for maximizing leverage/feel based on operation Internally contained primer-catch system, eliminating baby food jars and surgical hoses hanging from your press Made in America, from American materials
Oppdag den ultimate presisjonen innen omlasting med AREA 419s ZERO TURRET PRESS!
Etter flere års utvikling av omlastingsutstyr har Area 419 sett at mange selskaper overser kjernen av benken – presseverket. I slutten av 2019 startet de forskning og utvikling for å perfeksjonere den presise omlastingspressen – og vi er glade for å presentere ZERO. Dette produktet er en manifestasjon av vår jakt på ZERO toleranse omlasting, med ZERO friksjon.
Funksjoner:
- Milled fra amerikansk billet aluminium og rustfritt stål.
- 14 kulelager, inkludert et selvsmørende lineært sleeve-lager.
- Presisjonsbearbeidet 1,25″ ram med mindre enn 0,0006″ diametrisk klaring.
- Håndmålt og tilpasset for å sikre den mest presise rammeslaget på markedet.
- Linkagesystemet glir på lager og spesialtilpasset hardware for nær-ZERO slakk.
- Overdimensjonert ram med 0,75″ stålarm og ZERO-friksjonsknott.
- Overdimensjonert, spesiallaget ZERO-point pull-stud for turret-sikring.

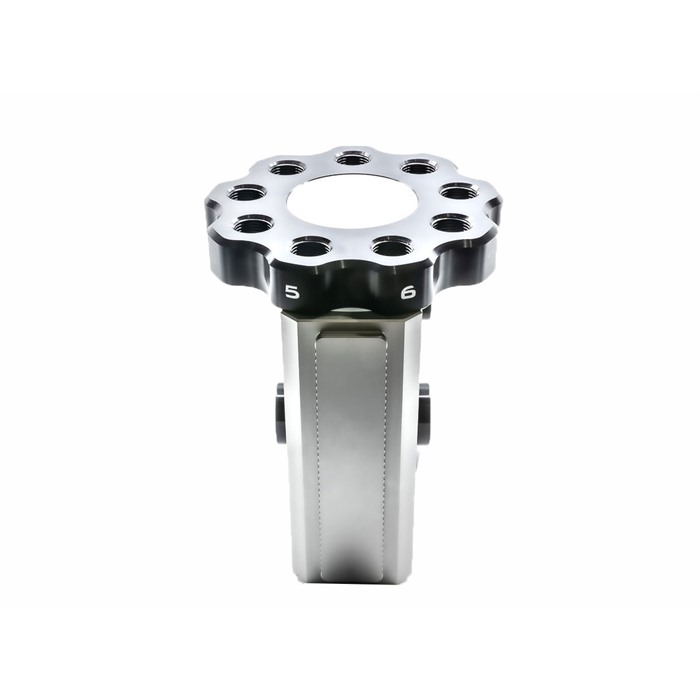

- Ball-detent system for nøyaktig plassering av turret.
- Bytte av turret fra en die til en annen krever kun en enkel dreining av en medfølgende t-håndtak.
- Repeterbarhetsvariasjon på mindre enn 0,0005″ ved indeksering av turret.
- Åpningen i pressen tillater størrelser og setning av hylser opp til 338LM.
- Aksepterer standard 7/8″ dies og standard shellholders.
- Inkludert en decapping/primer-catch system i presselegemet.
- En enkel skyvebrett (med detent) for en smidig og unobtrusive prosess.

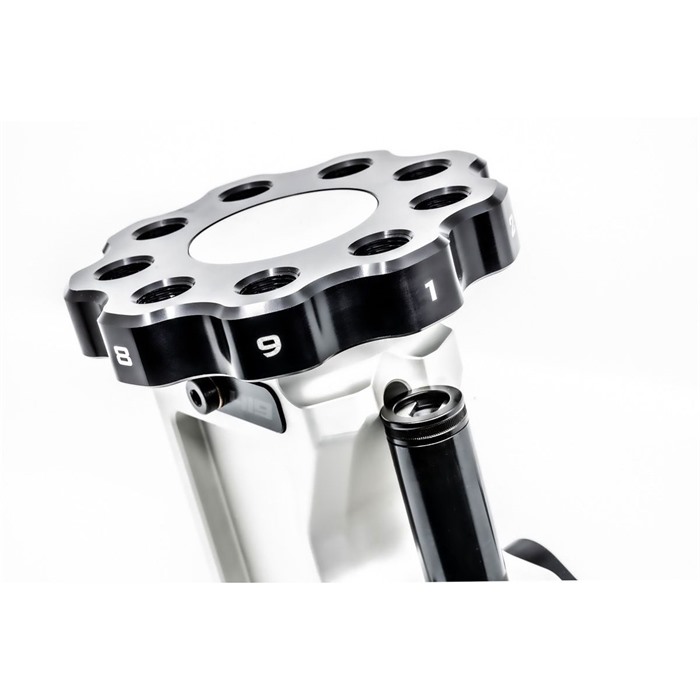

- ZERO-slop turret hode for enkel die-bytte uten variabilitet.
- 4,4″ tilgjengelig rammeslag for hylser opp til 338 Lapua Magnum.
- Mer effektiv energioverføring fra håndtak til ram via lagerstyrt bevegelse.

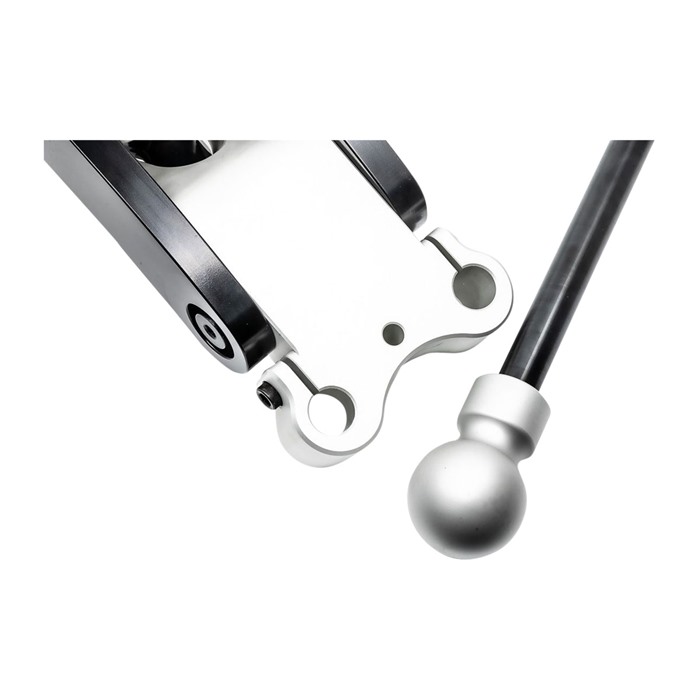

- Justerbar/utskiftbar håndtakoppsett for maksimal kraft og følelse basert på operasjon.
- Intern primer-catch system, eliminerer behovet for baby matglass og kirurgiske slanger.
- Produsert i Amerika, av amerikanske materialer.
Opplev forskjellen med ZERO TURRET PRESS fra AREA 419 – presisjon og kvalitet uten sidestykke!
