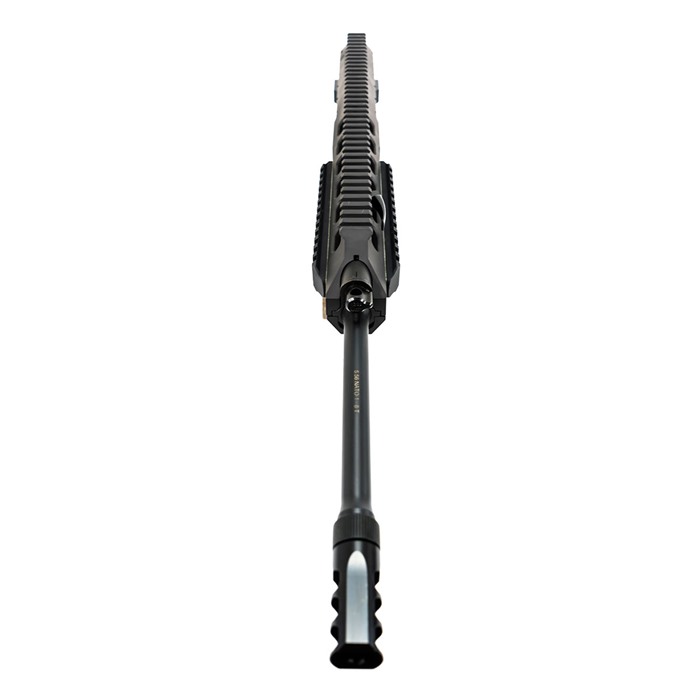

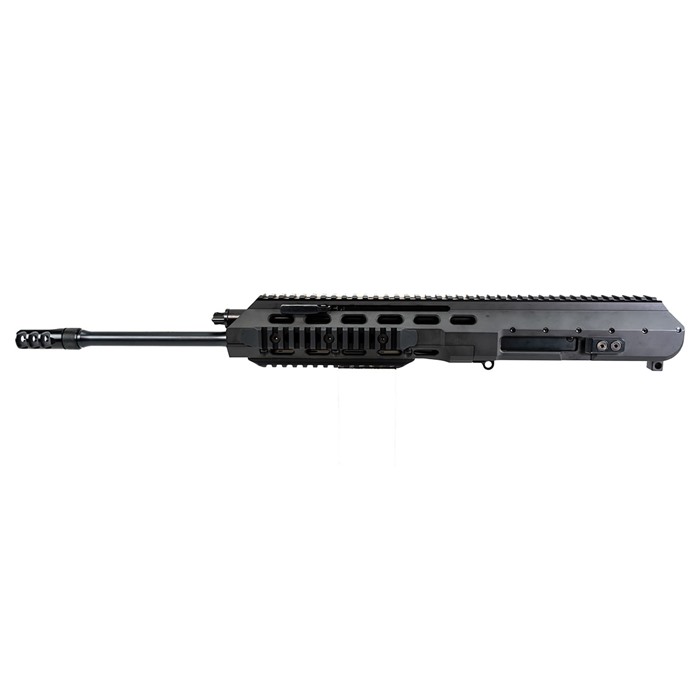

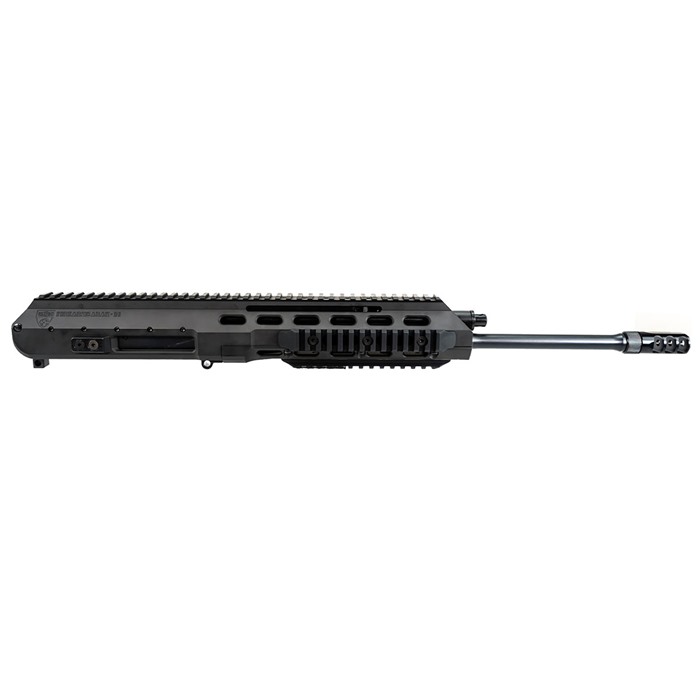

ARAK-21® Features Components of the ARAK-21® Upper Receiver: The ARAK-21® is a gas piston actuated, complete upper receiver assembly designed to seamlessly interface with the standard AR-15 platform. The total extent of the interface is simply the take down pin, and the pivot pin. The new ARAK-21® upper receiver offers you all its features with no change to your current lower receiver and can be installed in less than one minute with no tools. Your ARAK-21® upper receiver will be shipped to you with one “Barrel Assembly Unit” (BAU), or two, depending on which package you purchase. The BAU is comprised of the barrel, gas block, muzzle brake, gas piston, gas adjuster, and barrel trunnion. The only removable part of this assembly is the gas adjuster knob. The gas adjuster knob has 4 settings. Three of the settings allow different gas flows for optimum operation, and one setting blocks the gas flow for a single shot operation. The upper receiver includes the charging block, standard charging handle, lower forearm with screws, three aluminum full length picatinny rails, three insulating shims, bolt carrier assembly, lower recoil lug with spring guide rod, and dual recoil spring system. Along with your new ARAK-21® upper receiver you will receive your owners manual, and two Allen wrenches that will fit the screws that attach the lower forearm, and the front picatinny rails. Due to the unique and innovative features of the ARAK-21® upper receiver, there are very few parts that are interchangeable with a standard AR-15. The firing pin, extractor spring, and ejector spring are the only parts that are standard and interchangeable with an AR-15 upper receiver. Other features include: The upper receiver is fully machined from an aircraft grade 6061-T6 aluminum billet in a one piece design that incorporates a full length picatinny rail (Mil-STD-1913) on the top and three additional rails on the muzzle end of the receiver, making it a full M4 style quad rail upper. The top picatinny rail is laser engraved for optic placement. There are also half-length picatinny rails available. Long stroke variable setting gas piston system. There are three options for gas flow, and one for no gas flow. This allows for single shot operation. There is also a clean out port for the gas block between the gas cylinder, and the barrel. Charging handle is ambidextrous, non-reciprocating, foldable, spring returned and is easily relocated from left to right side without tools by the operator. Model “39” Eight (8) lug bolt design with involute profile for both right and left hand versions. The extractor is positioned at 3 o’clock. This allows for a left hand version to use the same bolt by simply removing the cam pin and rotating 180 degrees and reinstalling the cam pin. Self-contained firing pin retention system enclosed in a rectangular bolt carrier that no longer requires a cotter pin. Bolted in hardened steel rail system for the bolt carrier to ride on. This allows a metal on metal wear surface for better wear characteristics and a much smoother operation. The ARAK-21® system allows for a folding stock to be added, as our recoil system does not extend beyond the upper receiver to fully operate. This eliminates the noise and feel of the buffer tube cycling back and forth.
Oppdag ARAK-21® – En revolusjonerende løsning for AR-15 plattformen!
ARAK-21® er en gassstempel-drevet, komplett upper receiver som er designet for å sømløst integreres med standard AR-15 plattform. Med en enkel installasjon på under ett minutt, uten behov for verktøy, kan du oppgradere din nåværende rifle.
Komponenter av ARAK-21® Upper Receiver:
- Barrel Assembly Unit (BAU): Inkluderer løpet, gassblokken, munnbremsen, gassstempelet, gassjusteringen og løpet trunnion. Den eneste avtagbare delen er gassjusteringsknappen, som har 4 innstillinger for optimal drift.
- Fullt maskinert design: Laget av flykvalitets 6061-T6 aluminium, med en hel lengde picatinny rail (Mil-STD-1913) på toppen og tre ekstra rails på munnenden, noe som gir en full M4 stil quad rail upper.
- Variabel gassstempel system: Lang slaglengde med tre alternativer for gassflyt, og ett for ingen gassflyt, som muliggjør enkeltskuddsoperasjon.
- Ambidextrous ladearm: Ikke-reciprokal, foldbar og lett omplasserbar uten verktøy.
- Boltdesign: Modell “39” med åtte (8) lugs og involute profil for både høyre og venstre håndversjoner.
- Firing pin retention system: Selvforsynt system som eliminerer behovet for en cotter pin.
- Herdet stål railsystem: For bedre slitasjeegenskaper og en mye jevnere drift.
- Folding stock: ARAK-21® systemet tillater montering av en sammenleggbar kolbe, noe som reduserer støy og følelse av buffer tube som beveger seg frem og tilbake.
Med ARAK-21® får du en innovativ og unik løsning for din AR-15, som gir deg muligheten til å tilpasse og forbedre din rifle uten kompliserte endringer. Bestill din i dag hos Brownells Norge!
