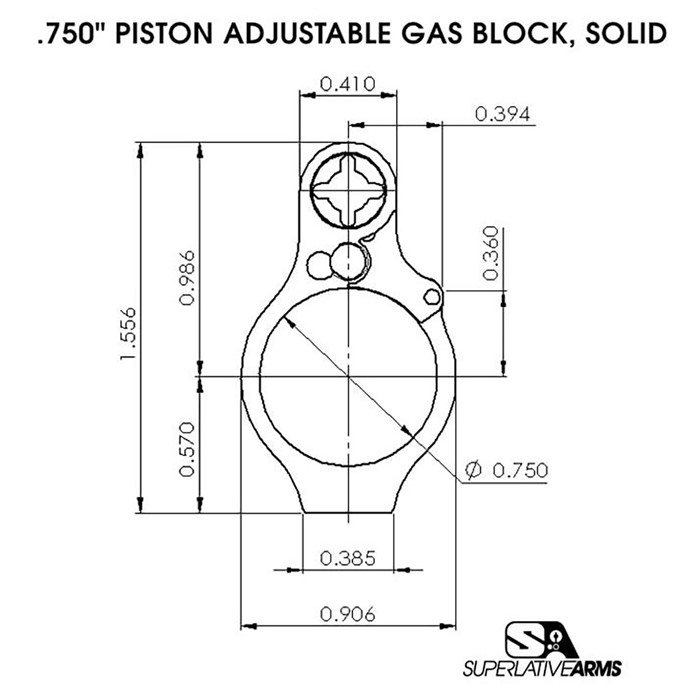

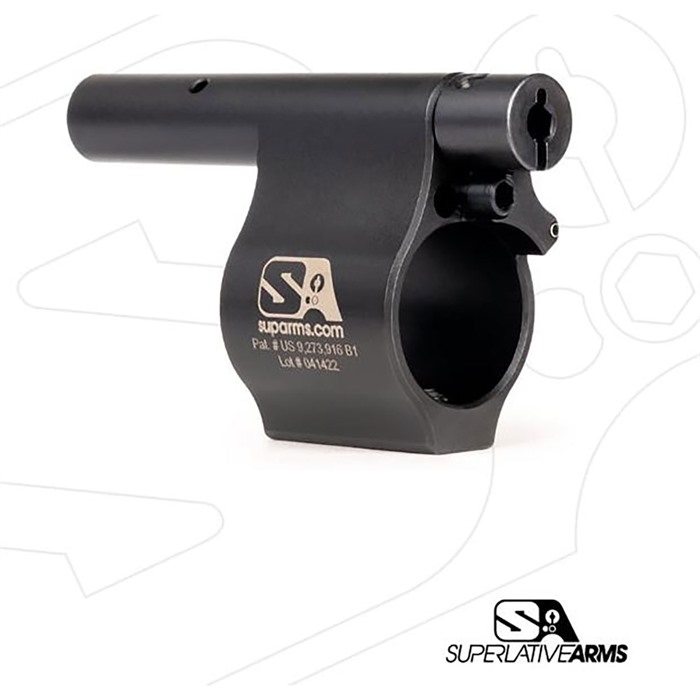

SUPERLATIVE ARMS LLC AR-15 ADJUSTABLE PISTON SYSTEM W/0.750" GAS BLOCK LEFT HAND The Superlative Arms patent pending “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. NOT RATED FOR 300 BLACKOUT IN PISTOL LENGTH Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. DATA: Firearm Type: AR15 Gas Length: Pistol, Carbine, Mid-Length, and Rifle Weight: 12.8 oz., 13.1 oz, 13.4 oz, and 13.8 oz Piston Block Attachment Type: Clamp On, Socket Head Cap Screws Piston Block Material and Finish: 416 SS, Melonite Carrier: Ion Bonded, 1 pc. Carrier w/ Skis and Dimpled Key Gas Adjustment: 30 Locked Positions, Front Of Block Bleed Off Port: Front Of Block INCLUDED: Piston Block Assembly Carrier (bolt not included). (1) 3/32" X 6" Hex Key (tool to adjust gas screw) (1) 9/64" X 6" Hex key (tool to install/remove gas block plug) (1) Bushing and insert tool Installation Instructions & QR Code For Video Tutorial
Overlegen justerbar gassblokk for AR-15
SUPERLATIVE ARMS LLC AR-15 ADJUSTABLE PISTON SYSTEM W/0.750" GAS BLOCK LEFT HAND tilbyr en banebrytende løsning for AR15-plattformen. Denne patenterte "Bleed Off" gassblokken justerer gassstrømmen ved å slippe ut gass fra blokken i stedet for å begrense strømmen som konvensjonelle justerbare blokker.
Viktige egenskaper:
- Ikke vurdert for 300 Blackout i pistol lengde
- Trykket i blokken reduseres kun til det som er nødvendig for å drive bolten, noe som gjør systemet renere og kjøligere.
- Reduksjon av følt rekyl.
- Patenterte justeringsdetent er plassert utenfor blokken for å unngå kontaminasjon.
- Gassjusteringsskruen begrenser ikke gassstrømmen, noe som forhindrer erosjon og fastkjøring av skruen.
- Sikkerhetsmekanisme forhindrer utilsiktet fjerning av skruen.
- Bleed off port for SBR’er og/eller dempere reduserer tilbakeslag.
Spesifikasjoner:
- Våpentype: AR15

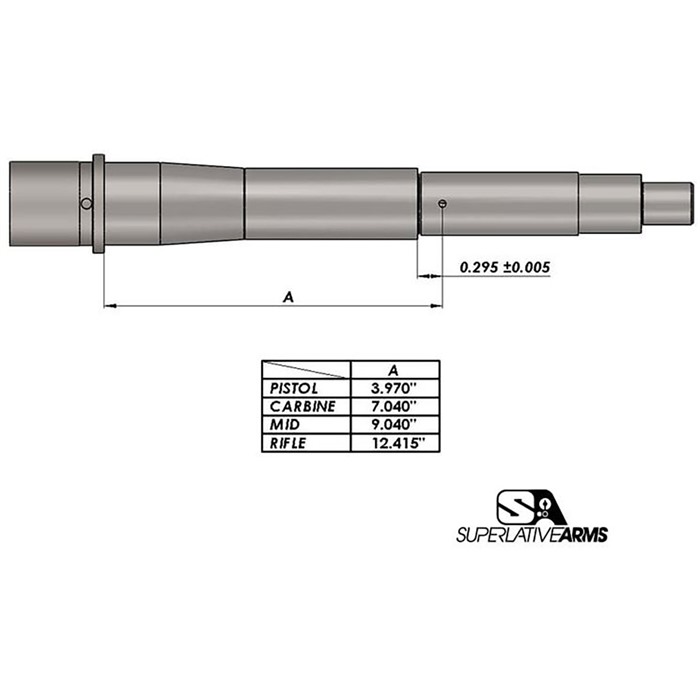

- Gasslengde: Pistol, Karabin, Mid-Length, og Rifle
- Vekt: 12.8 oz, 13.1 oz, 13.4 oz, og 13.8 oz
- Piston Block Festetype: Clamp On, Socket Head Cap Screws
- Piston Block Materiale og Finish: 416 SS, Melonite

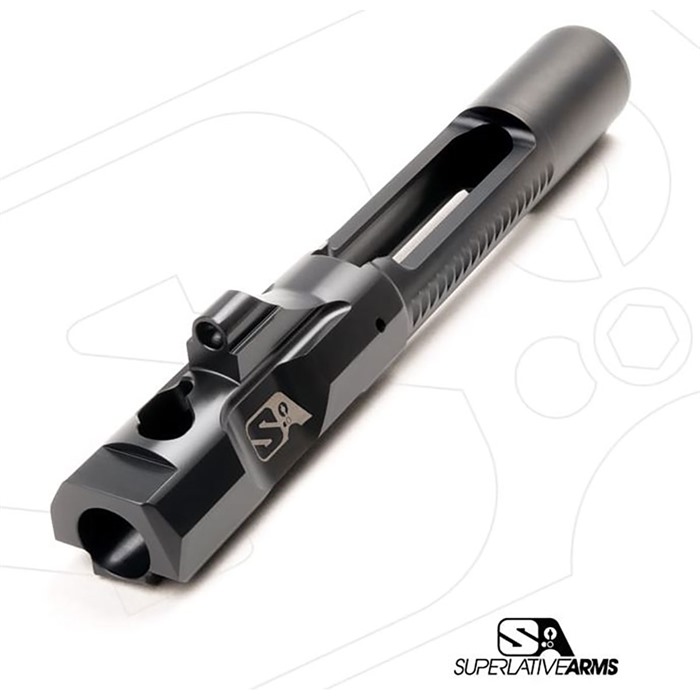

- Carrier: Ion Bonded, 1 pc. Carrier med Skis og Dimpled Key
- Gassjustering: 30 låste posisjoner, front av blokken
- Bleed Off Port: Front av blokken

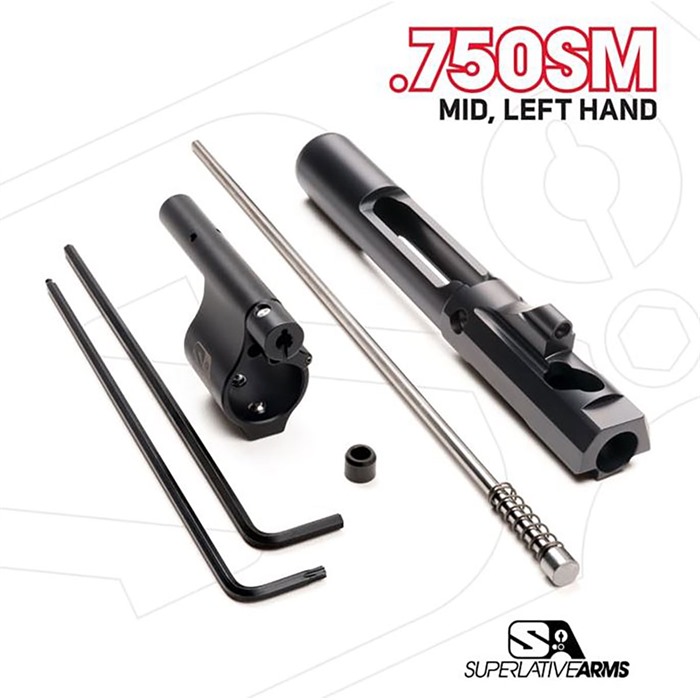

Inkludert i pakken:

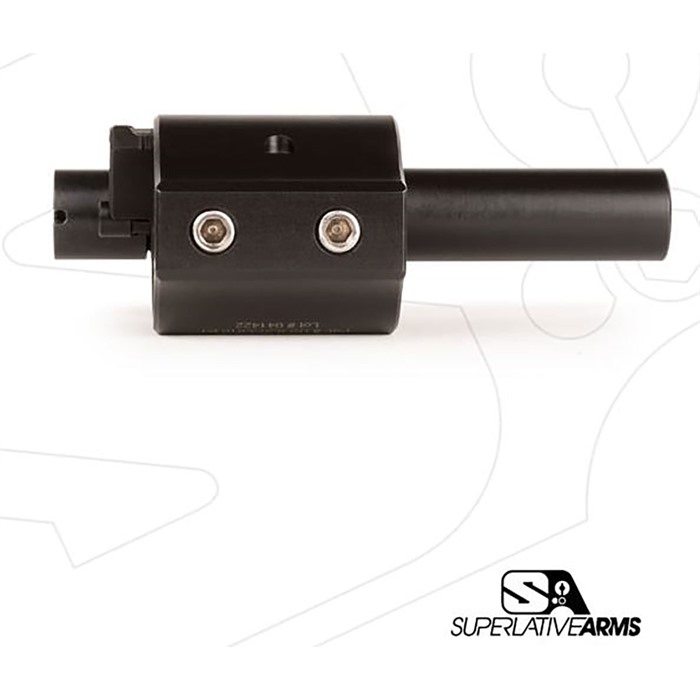

- Piston Block Assembly
- Carrier (bolt er ikke inkludert)
- (1) 3/32" X 6" Hex Key (verktøy for justering av gassskruen)
- (1) 9/64" X 6" Hex Key (verktøy for å installere/fjerne gassblokkplugg)
- (1) Bushing og innsettingsverktøy
- Installasjonsinstruksjoner & QR-kode for videotutorial
