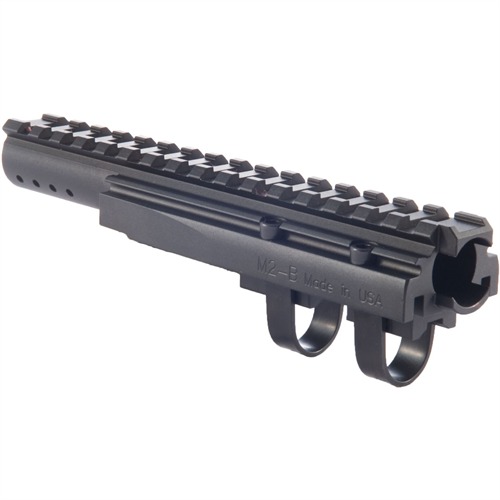

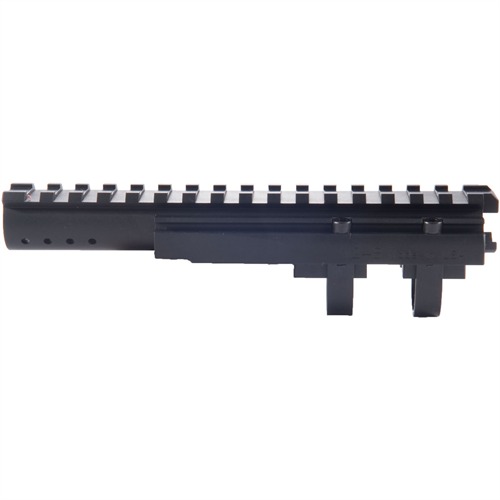

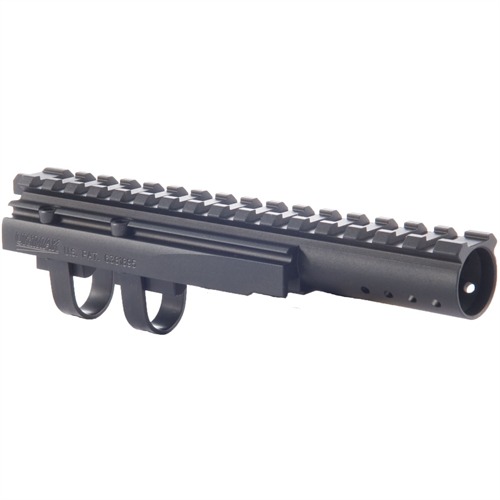

The M2-B has a Picatinny style rail positioned well below the iron sight axis, making this the lowest optic mount available for the AK. With a tubular sight mounted low, you will be able to use your optic without a comb riser and still use your regular hold. The system allows for co witnessing (the ability to use your iron sights right through a 1x sight as a back-up sighting system) when used with a tubular reflex sight. This heavy duty mount replaces the original steel gas tube and upper handguard, so it adds less than one ounce to the weight of the rifle, making it by far the lightest optic mount installation in the world. The forward positioning of the optic gives you faster, easier and more natural targeting while maintaining your full field of view. Multiple target or moving target engagements, with both eyes open, become second nature. The mount rarely if ever needs to be removed to clean the rifle, so you need not worry about loss of zero. Since the mount is clamped to the barrel and not jammed in between the gas block and the sight block like the original gas tube, several UltiMAK users have reported an improvement in their AKs' inherent accuracy. The UltiMAK Optics Mount has been engineered for compatibility with a wide range of AK rifle variations. If you have a 7.62 x 39 caliber AK with standard weight barrel and a standard length, removable gas tube (roughly seven inches, or 17.7 centimeters overall gas tube length) the Mount should fit nicely. We have yet to find a rifle of the above description that our mount does not fit, providing that the rifle is assembled reasonably straight. Some AKs have radically misaligned gas blocks as compared to the rear sight block. In rare cases, this can cause problems installing the UltiMAK Mount. (with vent holes, as found mostly on Chinese AKs) Replaces gas tube. Clamps directly to barrel for maximum stability and accuracy. Solid, one-piece 6061-T6 hard anodized aluminum body. Comes with 4140 steel clamps, screws, allen wrench, and instructions. No Gunsmithing. Made in U.S.A.
SPECS: Scout Mount – 6061-T6 hard anodized aluminum, 4140 steel mounting clamps, matte black. 6.7" (17cm) long. Fits 7.62x39 caliber rifles that have original gas tubes with side gas port holes as found mostly on Chinese AKs.
Kompakt og lett optisk monteringsløsning for AK-47
AK SCOUT MOUNT MODEL M2-B fra ULTIMAK er den ideelle løsningen for de som ønsker å oppgradere sin AK-47 med et lavprofil optisk monteringssystem. Denne monteringen er designet med en Picatinny stil skinne plassert godt under aksen til jernsiktene, noe som gjør dette til den laveste optiske monteringen tilgjengelig for AK.
Produktbeskrivelse
M2-B monteringen lar deg bruke en tubular sikte uten behov for en comb riser, samtidig som du beholder din vanlige holdning. Systemet tillater co-witnessing (muligheten til å bruke jernsiktene rett gjennom et 1x sikte som et backup siktesystem) når det brukes med et tubular reflex sikte. Denne solide monteringen erstatter den originale stålgassrøret og øvre håndtaket, noe som legger til mindre enn ett unse til vekten av riflen, og gjør den til den letteste optiske monteringen i verden.
- Raskere og mer naturlig måling med fremre plassering av optikken.
- Engasjement med flere mål eller bevegelige mål blir en naturlig del av skytingen.
- Monteringen trenger sjelden å bli fjernet for rengjøring av riflen, noe som betyr at du ikke trenger å bekymre deg for tap av nullstilling.
- Monteringen er festet til løpet og ikke klemt mellom gassblokken og sikteblokken, noe som kan forbedre den iboende nøyaktigheten til AK-en din.
UltiMAK Optics Mount er utviklet for å være kompatibel med et bredt spekter av AK-riflevarianter. Hvis du har en 7.62 x 39 kaliber AK med standard vektløp og et standard, avtagbart gassrør (omtrent syv tommer, eller 17.7 centimeter totalt gassrør lengde), bør monteringen passe perfekt. Vi har ennå ikke funnet en rifle av beskrivelsen ovenfor som vår monteringsløsning ikke passer til, forutsatt at riflen er montert rimelig rett.
Spesifikasjoner:
- Scout Mount – 6061-T6 hard anodisert aluminium, 4140 stålmonteringsklemmer, matt svart.
- Lengde: 6.7" (17cm).
- Passer 7.62x39 kaliber rifler med originale gassrør med sidegassport hull, som hovedsakelig finnes på kinesiske AK-er.
Ingen gunsmithing nødvendig. Laget i USA.
