BROWNELLS
RECEIVER FACING CUTTER & PILOTS

080000194

Trues The Receiver Face For A Highly Accurate Rifle; Eliminates Lathe Work

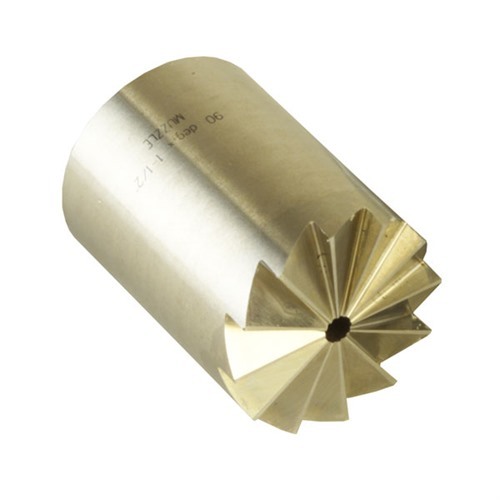

Hardened steel cutter and pilots provide the perfect combo for accurizing Remington 700 and AR-15 actions without a lathe. Large, 1½" diameter cutter squares the receiver face to the boltway for precise mating to the barrel. Twelve, 90° flutes deliver even pressure and a smooth, chatter-free cut when used with Brownells Muzzle Facing & Chamfering T-Handle, shown below, or our Drill Chuck Adaptor. .700” diameter pilot fits factory-original, Remington 700 receivers.

SPECS: Hardened steel, polished finish. Cutter - 90°, 2" (5.1cm) long x 1½" (3.8cm) O.D. Pilots - 2" long x .700" (17.8mm) or 1" (25.4mm) O.D.

Mer...

Motiverer mottakeren for en svært nøyaktig rifle; Eliminerer dreiebenkarbeid

Herdet stålkutter og piloter gir den perfekte kombinasjonsboksen for å nøyaktige Remington 700 og AR-15-handlinger uten dreiebenk. Stor kutter med en diameter på 1 ½ ruter mottagerens side mot bolten for nøyaktig parring til tønnen. Tolv, 90 ° fløyter gir jevnt trykk og et jevnt, skravelfri snitt når det brukes med Brownells Muzzle Facing & Chamfering T-Handle, vist nedenfor , eller vår Drill Chuck-adapter.... 700 ”-pilot i diameter passer fra fabrikkoriginale Remington 700-mottakere.

SPECS: Herdet stål, polert finish. Kutter - 90, 2 "(5,1 cm) lang x 1" (3,8 cm) O.D. Piloter - 2 "lange x. 700" (17,8 mm) eller 1 "(25,4 mm) O.D.

Mer...

Kundevurderinger for BROWNELLS REMINGTON 700 1-1/2" RECEIVER FACING CUTTER

Antall vurderinger: 4
Fra brownells.com: 4
Gjennomsnittsvurdering: 2

Why be cheap ? (21.09.2013)

Recently purchased the facing cutter and pilot for a remington 700. My comment is this. Why not make the pilot 7 inches long rather than the 2 5/8. This would be a much more accurate method. Fortunately I have access to a lathe and made my own pilot. Worked great! The pilot that I purchased could not and did not offer the precision that my "homemade one" did. P.S. the cutter worked beautifully and would highly recommend.

Does not fit the raceway (25.01.2015)

I would recommend pilot should be manufactured to fit the PTG .500 ID variable OD .700 - .705 raceway bushings. Or, make variable sizes in your style. One size .700 which you offer does not work because the raceway size differs in Rem 700 receivers. Once you figure that out Ill buy them. Thank you. Military Gunsmith 2112.

Be careful... (08.03.2014)

I use Brownell's cutters and pilots for all my muzzle crowns, and have had outstanding success... Because of this cutter/pilot setup working so well, I thought I'd try this unit.
First off, the pilot (.700) was way too loose in my Remington short action receiver. When I put the pilot in the rear of the receiver, it is good and snug, but the front gives way too much variance.
Next, I tried it in a Remington long action, and while it was better, it still offered enough side to side play to make me extremely nervous.
I applied layout fluid to the outside ring, and began cutting.. It started removing metal from the outside edge first, and ended with a nicely cut, smooth surface... however, I have no way of knowing if this is square.. I thought of installing a set screw in the front action screw hole, to keep the pilot snug against the upper ring, but again, not sure if that would end up with a square cut or not. This problem could easily be fixed if the pilot were long enough to go through the entire receiver, allowing both rings to center it.
Next, I tried the AR-15 (1") pilot. In both AR uppers I had laying around, a Daniel Defense flattop and a Colt A2, the pilot was too large to fit into the receiver! It will fit into the rear of the receivers, but the section that covers the barrel extension is too tight on both receivers for this pilot.
Be sure to securely clamp your receiver in a vertical position, first to let the cutter cut under its own weight, gravity helping to keep solid pressure, and second to avoid chatter marks. You will get tooling/chatter marks if you try to cut a receiver that isn't solidly mounted down.
One good thing is that the cutter accepts the same pilots that the crown cutters do, so this cutter can also be used as a 90 degree crown cutter, which is useful for large muzzles (.900" and up).
Looks like I'm going to have to sell some stuff to purchase the Manson accurizing kit - since I cannot afford $4000+ for a quality lathe.

Does the job (26.01.2017)

I've used this facing cutter on two Remington 700 receivers. It "chatters" very easily. I used several different lubricants on my on my first one, settling on STP oil treatment. But wasn't fully satisfied with it. On the second 700 receiver, I tried generous amounts of DAWN dishwashing liquid as a lubricant. It worked GREAT! I still had to work very slowly and pay careful attention to every move, but hey , that is part of the enjoyment of playing with guns.

Les 4 flere anmeldelser fra brownells.com

349 1199 3 NOK

Produktnr.: 080000194
BROWNELLS REMINGTON 700 1-1/2" RECEIVER FACING CUTTER Herdet stålkutter og piloter gir den perfekte kombinasjonsboksen for å nøyaktige Remington 700 og AR-15-handlinger uten dreiebenk. Stor kutter med en diameter på 1 ½ ruter mottagerens side mot bolten for nøyaktig parring til tønnen. Tolv, 90 ° fløyter gir jevnt trykk og et jevnt, skravelfri snitt når det brukes med Brownells Muzzle Facing & Chamfering T-Handle, vist nedenfor , eller vår Drill Chuck-adapter.... 700 ”-pilot i diameter passer fra fabrikkoriginale Remington 700-mottakere.

1199 NOK 0 kr 1 199,00 *

Restordre. Sendes når kommer til lager. Leveringstid ca 4-12 uker fra USA lager.

Spesifikasjoner: Make: Remington Modell: 700

Legg til ønskeliste

Still spørsmål

Detaljer

Legg til ønskeliste

Still spørsmål

Attributes

Make: Remington Modell: 700 Leveringsvekt: 0,454kg Høyde: 25mm Bredde: 18mm Lengde: 64mm

Elementdetaljer

Made in USA

Produktnr.: 080000195
BROWNELLS 1" RECEIVER FACING PILOT Herdet stålkutter og piloter gir den perfekte kombinasjonsboksen for å nøyaktige Remington 700 og AR-15-handlinger uten dreiebenk. Stor kutter med en diameter på 1 ½ ruter mottagerens side mot bolten for nøyaktig parring til tønnen. Tolv, 90 ° fløyter gir jevnt trykk og et jevnt, skravelfri snitt når det brukes med Brownells Muzzle Facing & Chamfering T-Handle, vist nedenfor , eller vår Drill Chuck-adapter.... 700 ”-pilot i diameter passer fra fabrikkoriginale Remington 700-mottakere.

349 NOK 6 kr 349,00 *

Leveringstid ca. 14-21 dager.
6 stk. på lageret i USA

Spesifikasjoner: Make: Universal Rifles

Legg til ønskeliste

Still spørsmål

Detaljer

Legg til ønskeliste

Still spørsmål

Attributes

Make: Universal Rifles Leveringsvekt: 0,204kg Høyde: 13mm Bredde: 102mm Lengde: 152mm

Elementdetaljer

Made in USA

Produktnr.: 080000197
BROWNELLS .700" RECEIVER FACING PILOT Herdet stålkutter og piloter gir den perfekte kombinasjonsboksen for å nøyaktige Remington 700 og AR-15-handlinger uten dreiebenk. Stor kutter med en diameter på 1 ½ ruter mottagerens side mot bolten for nøyaktig parring til tønnen. Tolv, 90 ° fløyter gir jevnt trykk og et jevnt, skravelfri snitt når det brukes med Brownells Muzzle Facing & Chamfering T-Handle, vist nedenfor , eller vår Drill Chuck-adapter.... 700 ”-pilot i diameter passer fra fabrikkoriginale Remington 700-mottakere.

399 NOK 2 kr 399,00 *

Leveringstid ca. 14-21 dager.
2 stk. på lageret i USA

Spesifikasjoner: Make: Universal Rifles

Legg til ønskeliste

Still spørsmål

Detaljer

Legg til ønskeliste

Still spørsmål

Attributes

Make: Universal Rifles Leveringsvekt: 0,113kg Høyde: 20mm Bredde: 79mm Lengde: 99mm

Elementdetaljer

Made in USA

Trues The Receiver Face For A Highly Accurate Rifle; Eliminates Lathe Work

SPECS: Hardened steel, polished finish. Cutter - 90°, 2" (5.1cm) long x 1½" (3.8cm) O.D. Pilots - 2" long x .700" (17.8mm) or 1" (25.4mm) O.D.

Mer...

Motiverer mottakeren for en svært nøyaktig rifle; Eliminerer dreiebenkarbeid

SPECS: Herdet stål, polert finish. Kutter - 90, 2 "(5,1 cm) lang x 1" (3,8 cm) O.D. Piloter - 2 "lange x. 700" (17,8 mm) eller 1 "(25,4 mm) O.D.

Mer...

Kundevurderinger for BROWNELLS REMINGTON 700 1-1/2" RECEIVER FACING CUTTER

Antall vurderinger: 4
Fra brownells.com: 4
Gjennomsnittsvurdering: 2

Why be cheap ? (21.09.2013)

Does not fit the raceway (25.01.2015)

Be careful... (08.03.2014)

Does the job (26.01.2017)

Les 4 flere anmeldelser fra brownells.com
