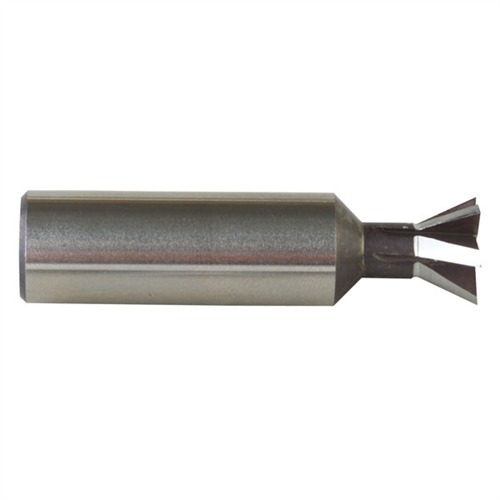

1911 AUTO HSS LO-MOUNT SIGHT BASE CUTTER

080621495
65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. 2" (5cm). .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder. DO NOT EXCEED 700 rpm, HIGHER SPEED WILL BREAK TEETH.
649 649 1 NOK
Produktnr.: 080621495
BROWNELLS 65 HSS LO-MOUNT SIGHT BASE CUTTER .490" Disse kutterne er spesialdesignet av oss og laget i henhold til våre spesifikasjoner for å kutte siktbasesporet som kreves for å montere Wichita og Novak Lo-Mount 1911 Auto sikter. Bruk ¼" endefres av karbid for å fjerne hoveddelen av materialet (se tegningen ovenfor), og foret deretter det endelige svalehalesnittet. Sluttsnittet til nedre bakre del av sleiden gjøres med en endefres og er ikke en del av siktbunnssnittet. Laget litt underdimensjonert for å kompensere for variasjoner i siktebaser og fresetoleranser ved installasjon. Med populariteten til tilpassede 1911 Auto Pistols er denne kutteren en du vil bruke ofte i ditt spesialarbeid. FORSIKTIG: Kun for bruk i fresemaskin. 2" (5 cm) ). 0,495" diameter kuttet. ½" (12,7 mm) diameter skaft. 65° skulder. IKKE OVER 700 rpm, HØYERE HASTIGHET VIL KNUTTE TENNER.
649 NOK 0 kr 649,00 *
Restordre. Sendes når kommer til lager. Leveringstid ca 4-12 uker fra USA lager.
Spesifikasjoner: Degree: 65

Attributes

Degree: 65 Leveringsvekt: 0,045kg Høyde: 5mm Bredde: 76mm Lengde: 140mm

Elementdetaljer

Made in USA




65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. 2" (5cm). .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder. DO NOT EXCEED 700 rpm, HIGHER SPEED WILL BREAK TEETH.
